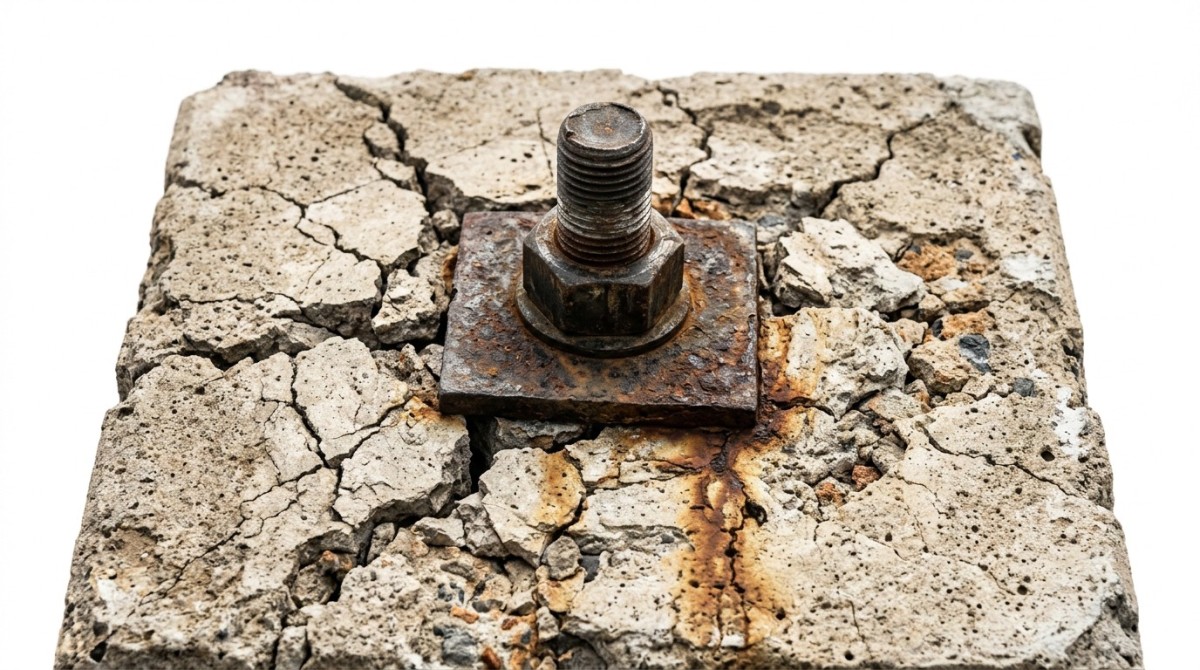

Warning signs of failing anchor systems in old masonry

Ensuring Structural Durability in aging masonry demands a proactive approach to monitoring the integrity of critical infrastructure. As legacy Industrial Fasteners reach the end of their design life, identifying the warning signs of failing anchor systems becomes paramount for maintaining overall Structural Safety. For technical evaluators and project managers, understanding how environmental stressors and seismic volatility impact Infrastructure Materials is essential to preventing catastrophic failure. Recognizing early indicators—such as masonry spalling, visible corrosion, or anchor displacement—is the first step in implementing effective Structural Repair and Material Fabrication strategies. This analysis provides the technical benchmarking necessary to uphold rigorous safety standards and ensure the long-term stability of high-value structural assets.

Visual Indicators and Physical Deformation in Legacy Masonry Anchors

In the realm of structural engineering, the primary warning signs of failing anchor systems are often manifested through physical deformation of the surrounding masonry substrate. When high-strength structural fastening systems begin to lose their grip, the immediate environment around the anchor point undergoes significant stress. For technical evaluators, the presence of hairline fractures radiating from the anchor head is a critical red flag. These cracks, often measuring between 0.2mm and 0.5mm in width initially, indicate that the mechanical or chemical bond is transferring localized loads inefficiently, potentially leading to a progressive collapse of the masonry unit itself.

Displacement is another unequivocal sign of system compromise. A deviation as small as 2-5 degrees from the original installation axis can signal that the internal expansion mechanism or the adhesive bond has failed due to cyclical loading or material fatigue. In older structures where Grade 8.8 or lower-specification fasteners were used, this displacement often precedes total withdrawal. Project managers must monitor these shifts using precision laser-scanning or digital calipers to determine if the movement is active or stabilized. Any active movement within a 30-day observation window necessitates immediate intervention to prevent structural instability.

Spalling, or the breaking off of masonry fragments, is particularly dangerous in high-traffic industrial environments. When an anchor system is overloaded or has been subjected to seismic volatility, the internal pressure can exceed the tensile strength of the brick or stone. This results in "cone failure," where a section of the masonry is pulled out along with the anchor. Data suggests that in structures over 40 years old, the masonry strength may have degraded by 15-20% due to environmental carbonation, making these spalling events more frequent and less predictable without regular technical benchmarking.

To assist in the technical evaluation process, the following table outlines the common physical indicators of anchor failure and their associated risk levels for structural integrity. These benchmarks are essential for quality control personnel tasked with prioritizing maintenance schedules across extensive infrastructure portfolios. By categorizing these signs, decision-makers can allocate resources more effectively to the most critical failure points.

The data presented in the table confirms that displacement and spalling represent the highest tiers of structural risk. While radial cracking may be the earliest sign, it is often the most overlooked by non-technical operators. Establishing a baseline using international standards like ISO 13822 for the assessment of existing structures allows project managers to transition from reactive repairs to a predictive maintenance model, significantly extending the lifecycle of the facility.

Chemical Degradation and Corrosion Dynamics in Fastening Systems

Beyond physical movement, the chemical integrity of the infrastructure materials plays a decisive role in anchor performance. Corrosion is the silent killer of structural fasteners, especially in coastal or high-pollution industrial zones. When moisture penetrates the masonry pores, it facilitates an electrochemical reaction between the anchor material and its surroundings. For Grade 12.9 specialized bolts, even localized pitting corrosion can lead to hydrogen embrittlement, a catastrophic failure mode where the fastener snaps under normal load conditions without any prior plastic deformation.

Oxidation signs, such as rust staining on the masonry surface, are often the tip of the iceberg. Visible rust typically indicates that at least 15-20% of the fastener's cross-sectional area has already been compromised. In older masonry, the use of non-galvanized or poorly coated fasteners exacerbates this issue. Technical evaluators should look for "bleeding" patterns—streaks of iron oxide running down the wall—which suggest that the corrosion is occurring deep within the masonry substrate where the anchor's expansion zone is located.

Environmental factors like carbonation and chloride ingress further accelerate the degradation of chemical anchors. In legacy structures, the original resin or epoxy used for bonding may have a design life of only 20-25 years. As these materials age, they become brittle and lose their adhesive strength. Benchmarking against ASTM E488 standards for pull-out strength is vital when dealing with aged chemical anchors. If a technical assessment reveals a loss of bond strength exceeding 10%, the entire fastening system should be slated for upgrade using modern, high-performance industrial adhesives and sealants.

The following list highlights the primary environmental stressors that procurement directors and safety managers must account for when evaluating the longevity of their fastening assets. These factors directly influence the selection of replacement materials and shielding protocols.

• Chloride Exposure: Common in maritime environments; increases corrosion rates by up to 300% compared to inland sites.
• Carbonation Depth: Reduces the alkalinity of masonry, stripping away the natural protective layer of steel fasteners.
• Thermal Cycling: Fluctuations from -10°C to 40°C cause differential expansion between the anchor and the masonry, weakening the bond over 5-10 annual cycles.
• Electromagnetic Saturation: High EMI environments can induce micro-currents in metal fasteners, potentially accelerating galvanic corrosion in certain specialized alloys.

Addressing these chemical threats requires a multidisciplinary approach involving both material fabrication and specialized protection. Implementing nano-layered gaskets or specialized coatings can provide the necessary shielding to mitigate these risks. For Chief Infrastructure Officers, investing in high-performance materials today avoids the exponential costs of emergency structural repair and the liability associated with equipment failure in sensitive electronic or aerospace environments.

Technical Benchmarking for Anchor System Reliability

To maintain the integrity of infrastructure, technical benchmarking must be integrated into the standard operating procedures of any Top 500 engineering firm. This involves comparing current performance metrics against established international standards such as Eurocode 2 (Part 4) and MIL-SPEC for extreme environments. Technical evaluators use non-destructive testing (NDT) to assess the internal state of anchors without compromising the current load-bearing capacity. Methods such as Ground Penetrating Radar (GPR) can detect voids in the masonry around the anchor, which are often precursor signs of failure.

Load testing remains the gold standard for verifying anchor reliability. A typical technical assessment involves applying a proof load—usually 1.25 to 1.5 times the design load—to a representative sample of anchors (typically 5% of the total installation). If any anchor fails to hold the proof load for a sustained period of 5-10 minutes, the entire system is deemed non-compliant. This rigorous testing ensures that seismic bearings and structural connectors can withstand the extreme peak loads associated with seismic volatility or industrial vibration.

The data collected from these tests allows for the creation of a "structural health score." For procurement directors, this score is a vital metric when deciding between localized repair and full-scale system replacement. In cases where the masonry substrate is the limiting factor, traditional mechanical anchors may no longer be viable. Instead, specialized reinforcement materials like Carbon-Fiber-Reinforced Polymers (CFRP) can be used to strengthen the masonry before new, high-strength structural fastening systems are installed.

The table below illustrates the recommended inspection and testing frequencies based on the criticality of the structure and the environmental exposure level. This framework helps project managers develop a sustainable maintenance roadmap that aligns with global safety protocols and century-long lifecycle durability goals.

As indicated by the benchmarking data, strategic assets require a frequency of oversight that is 400% higher than standard structures. This intensity of monitoring is necessary because the cost of failure in a high-tech or aerospace conglomerate includes not just the structural repair but also the loss of sensitive electronic assets and potential regulatory fines. G-SCE provides the technical repository to manage these complex datasets and ensure compliance across global operations.

Strategic Repair and Lifecycle Extension Strategies

Once the warning signs of failing anchor systems have been identified and benchmarked, the transition to the structural repair phase is critical. For aging masonry, a simple "like-for-like" replacement is rarely sufficient. The repaired system must be engineered to handle current seismic isolation requirements and modern environmental loads. Utilizing flexible expansion and seismic isolation units can help decouple the anchor from the masonry during extreme events, preventing the catastrophic spalling mentioned earlier.

The selection of repair materials must be evidence-based. For example, when anchoring into weak or porous old brick, the use of screen tubes with injectable chemical anchors ensures an even distribution of the adhesive, creating a "key" that mechanical expansion anchors cannot achieve. This method can increase the effective load capacity of an old masonry wall by 40-60%. Furthermore, incorporating specialized reinforcement materials such as carbon-fiber grids can stabilize the entire wall plane, providing a secure foundation for the fastening systems.

Lifecycle durability is also heavily dependent on sealing and protection. High-performance industrial sealing and adhesives must be used to prevent water ingress into the newly drilled holes. A failure to seal the anchor point can lead to accelerated corrosion of even the highest grade materials within 2-4 years. By benchmarking these materials against ISO and ASTM standards, project managers can guarantee that the structural integrity of the asset will remain uncompromised for the next 50 to 100 years of its operational life.

Frequently Asked Questions on Masonry Anchor Safety

How can I distinguish between cosmetic masonry cracking and structural anchor failure?

Cosmetic cracks are typically superficial and follow mortar joints without a specific pattern. Structural failure cracks radiate directly from the anchor point or appear as "cone" fractures. If the crack width exceeds 0.3mm or shows signs of widening over a 14-day period, it should be treated as a structural integrity issue requiring a technical evaluation by a certified engineer.

What is the typical lifespan of a chemical anchor system in an industrial environment?

Most standard industrial epoxy anchors have a design life of 25-30 years. However, high-performance variants benchmarked against ETA (European Technical Assessment) standards can achieve a 50-year or even a 100-year lifecycle when properly installed and protected from UV and extreme chemical exposure. Regular NDT every 5 years is recommended for systems older than 20 years.

Is it possible to upgrade anchor systems without decommissioning the facility?

Yes, through a phased structural repair strategy. By using post-installed reinforcement and high-strength fasteners, engineers can install redundant anchor points while the primary system is still under load. This approach is common in Global Top 500 manufacturing plants where downtime costs can exceed $50,000 per hour. G-SCE provides the technical guidelines for these non-invasive upgrade protocols.

In conclusion, the integrity of infrastructure in the face of aging masonry and environmental stressors depends on the early recognition of failure signs and the application of rigorous technical benchmarking. By focusing on material fabrication excellence and adhering to international safety standards, project managers and enterprise decision-makers can protect their high-value assets. Whether through high-strength fastening systems or advanced EMI shielding, maintaining structural safety is a continuous process of evaluation and specialized reinforcement. For those managing critical structural and electronic assets, staying ahead of the failure curve is not just a safety requirement—it is a strategic business necessity.
